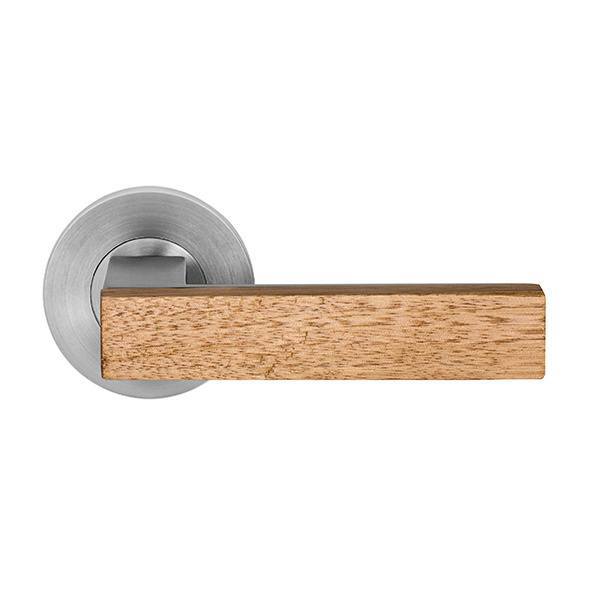

Timber Quad on 63mm DIA Round Rose

Product Code: TQU-R20

With its inherent warmth and texture, the award-winning Timber Quad is a pleasure to use. Inspired by early 20th century modernist architecture, the confident exhibition of sleek lines ensures the Timber Quad adds a modern touch to any door. The 63mm ø round rose has been specifically designed to suit doors with a 54mm ø hole.

Need Help?

Click here for assistance in using this page to create Spec Sheets or request a quote.

Timber Quad on 63mm DIA Round Rose

My Configuration Please select all options to complete your configuration


  • Material
    American White Oak or American Black Walnut, Brass
  • Dimensions

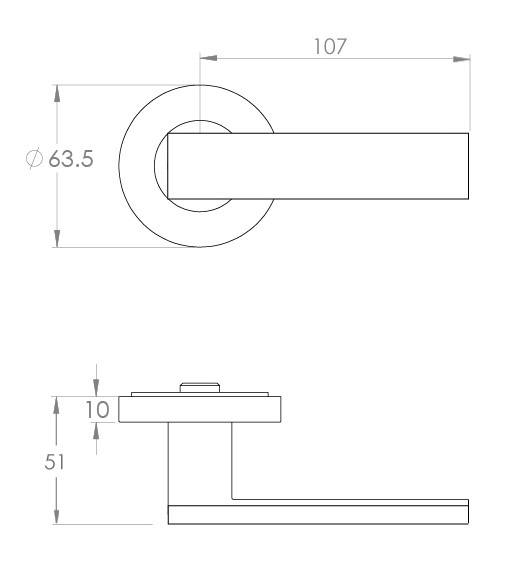

    Overall h63.5 x w138.5 x d51 (see line drawing download)
  • Fixing

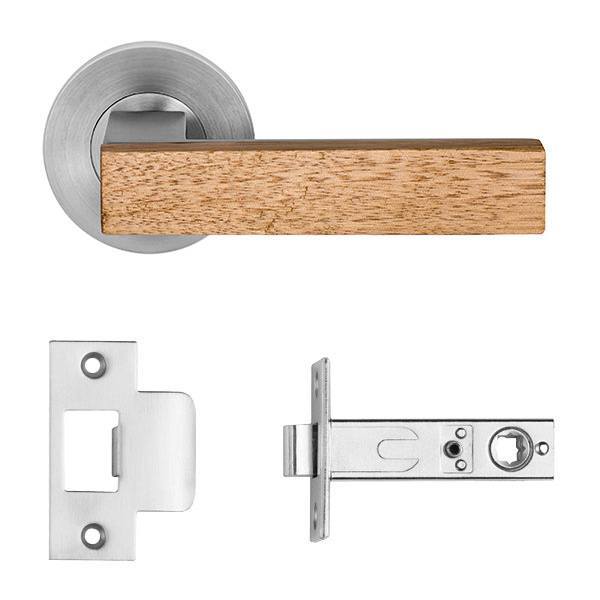

    Through bolt fixing, semi concealed. Self adjusting spindle 7.8mm to 8mm. Fits any lock or latch. Designed for use with doors that have 54mm DIA pre-bore.
  • Door Thickness
    Suits from 32mm to 52mm door as standard. For thicker doors longer screws and spindles are available.
  • Application
    This door handle suits most internal and external, swinging door applications.
