Neo Timber Blade Pull 53x20mm with cut-out and stainless backing

Product Code: G4287

Beautiful, modest and natural in style, the Neo timber blade pull features timber with a stainless steel backing for added strength and structure. Ideal for standard and highly used doors in the commercial or residential applications. Optimally designed to be used for pivot, hinged and sliding doors and can be supplied in a single or back to back fixing. Available in raw or a choice of 5 selected interior/exterior stains that will best suit your space.

Compliance:

Need Help?

Click here for assistance in using this page to create Spec Sheets or request a quote.

Neo Timber Blade Pull 53x20mm with cut-out and stainless backing

My Configuration Please select all options to complete your configuration

Specifications

  • Material
    American White Oak or American Black Walnut, Brass
  • Dimensions

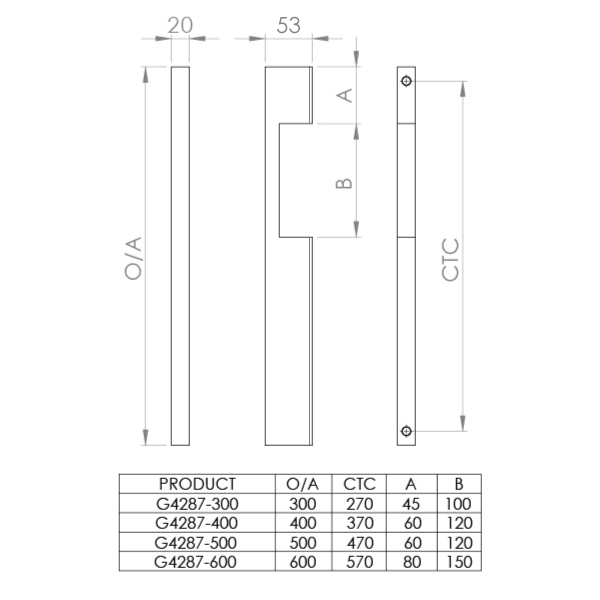

    Overall h300/400/500/600 x w20 x d53 mm (see line drawing download)
  • Fixing
    Rear fixing to suit aluminium or wood doors.
  • Door Thickness
    Suits up to 70mm doors as standard. For thicker doors longer screws are available.
  • Application
    This door handle suits most internal and external sliding door applications.
