Neo Blade Pull 38 x 12mm

Product Code: 5283

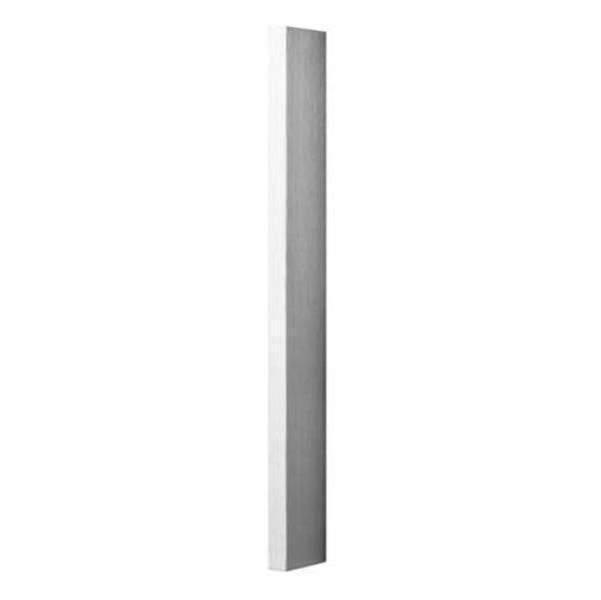

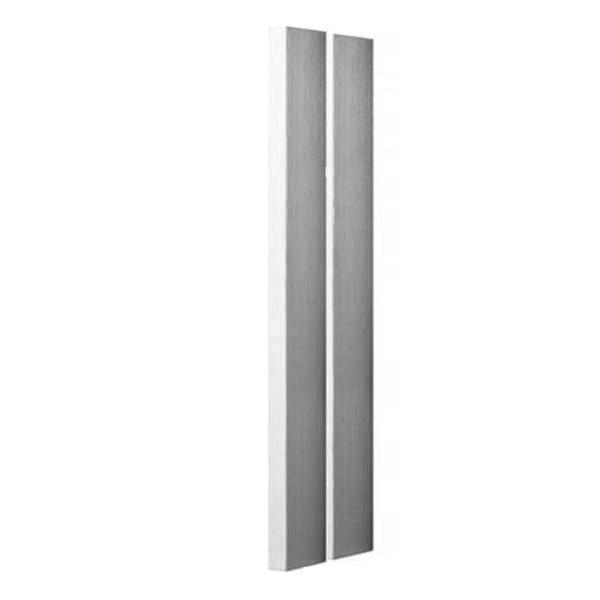

Sleek, stylish and minimal, the Neo blade pulls are a striking and practical alternative to flush pulls for sliding doors. The Neo 5283 is slightly thicker and deeper in projection than the Neo 5280, creating a substantial feature with more solidity for larger sliding doors. Available in five standard lengths.

Need Help?

Click here for assistance in using this page to create Spec Sheets or request a quote.

Neo Blade Pull 38 x 12mm

My Configuration Please select all options to complete your configuration

Specifications

  • Material
    Brass
  • Dimensions

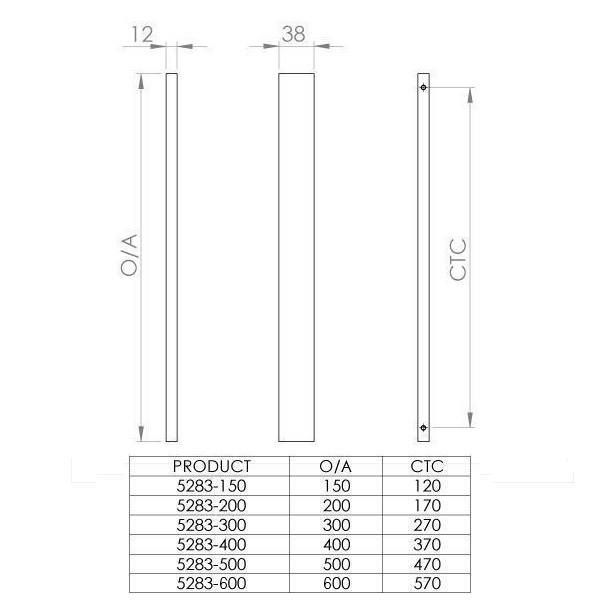

    Overall h150/200/300/400/500 x w12 x d38 mm (see line drawing download)
  • Fixing
    Through bolt, surface or rear fixing to suit aluminium or wood doors.
  • Door Thickness
    Suits up to 70mm doors as standard. For thicker doors longer screws are available.
  • Application
    This door handle suits most internal and external sliding door applications.
