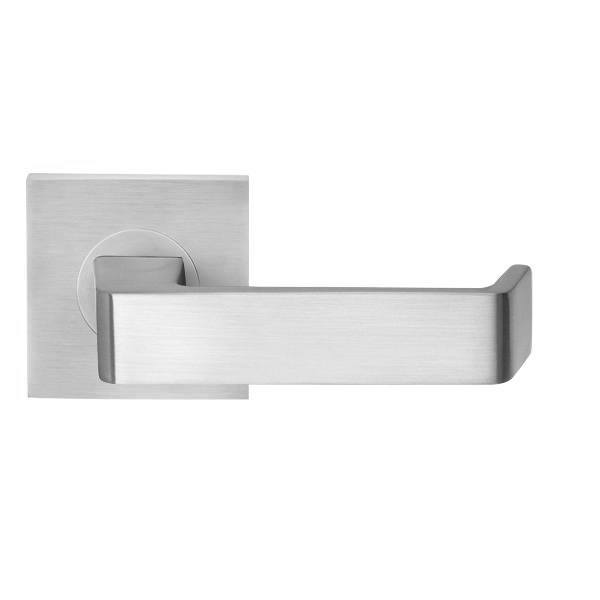

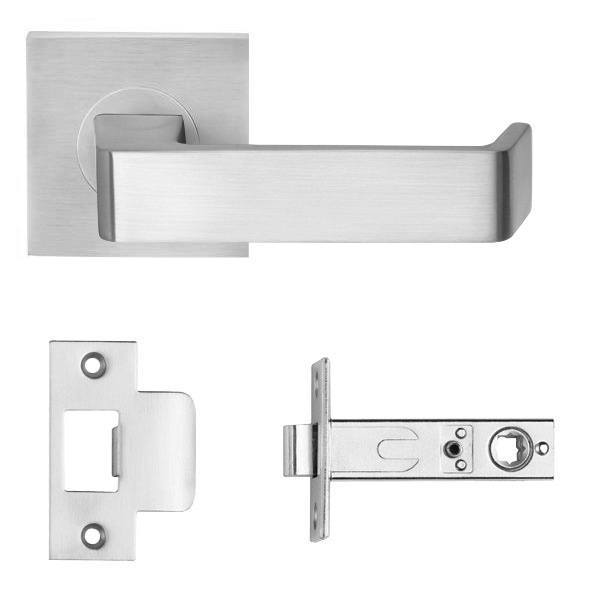

Momo on 63mm Square Rose

Product Code: MO-R70

Streamlined, square lines that blend with soft curves, the Momo handle on a presents a stylish, bold and distinctive feature in any environment. The 63mm square rose has been specifically designed to suit doors with a 54mm ? hole.

Compliance:

Need Help?

Click here for assistance in using this page to create Spec Sheets or request a quote.

Momo on 63mm Square Rose

My Configuration Please select all options to complete your configuration

Specifications

  • Material
    Zinc
  • Dimensions

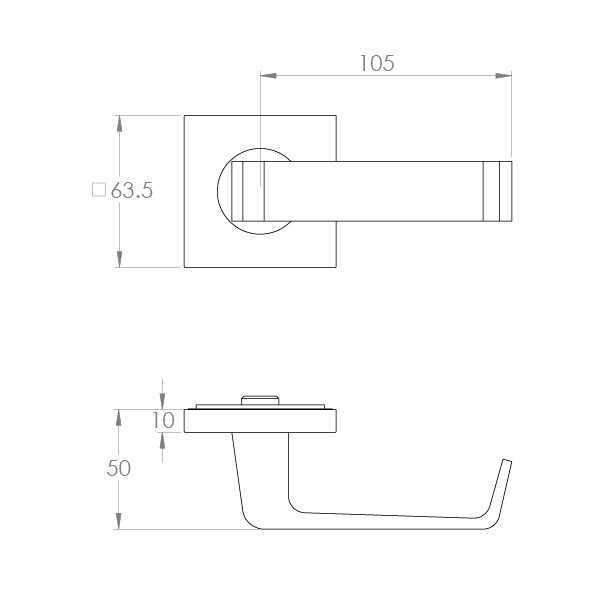

    Overall h63.5 x w136.5 x d50 (see line drawing download)
  • Fixing
    Through bolt fixing, semi concealed. Self adjusting spindle 7.8mm to 8mm. Fits any lock or latch. Designed for use with doors that have 54mm DIA pre-bore.
  • Door Thickness
    Suits from 32mm to 52mm door as standard. For thicker doors longer screws and spindles are available.
  • Application
    This door handle suits most internal and external, swinging door applications.
