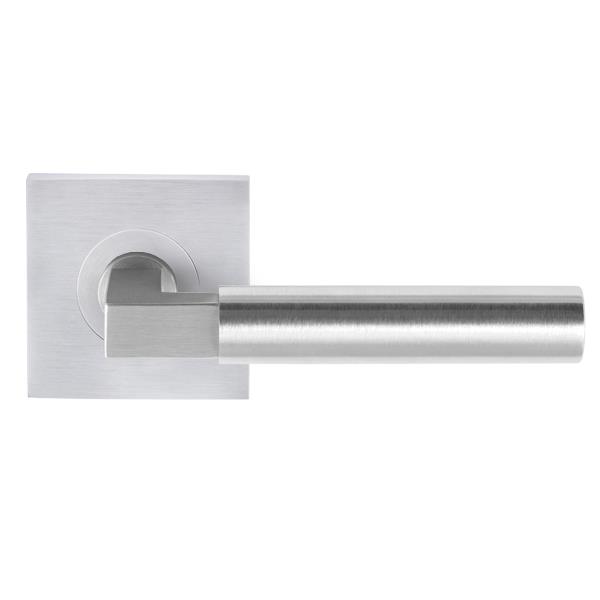

Lanex on 63mm Square Rose

Product Code: LX-R70

Inspired by the Bauhaus era, the Lanex lever door handle blends basic shapes with a distinctive trend, resulting in a decorative door handle that is stunning and stylish which suits a variety of decorative design settings. The 63mm square rose plate has been specifically designed to suit doors with a 54mm ø hole.

Compliance

Need Help?

Click here for assistance in using this page to create Spec Sheets or request a quote.

Lanex on 63mm Square Rose

My Configuration Please select all options to complete your configuration

Specifications

  • Material
    Brass
  • Dimensions

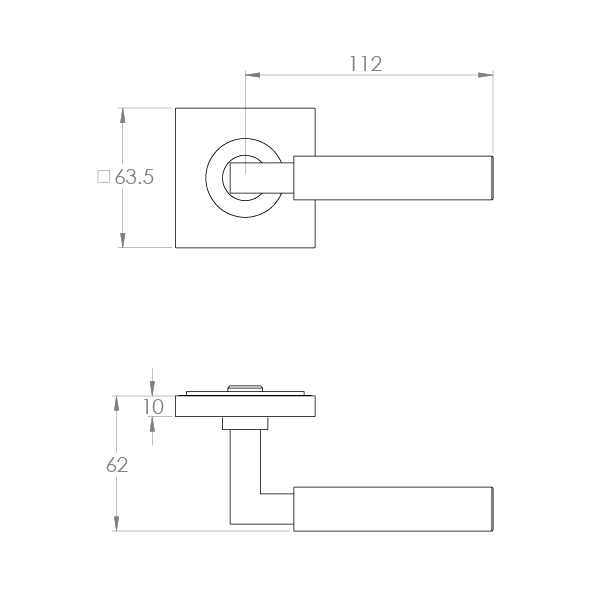

    Overall h63.5 x w143.5 x d63 (see line drawing download)
  • Fixing
    Through bolt fixing, semi concealed. Self adjusting spindle 7.8mm to 8mm. Fits any lock or latch. Designed for use with doors that have 54mm DIA pre-bore.
  • Door Thickness
    Suits from 32mm to 52mm door as standard. For thicker doors longer screws and spindles are available.
  • Application
    This door handle suits most internal and external, swinging door applications.
