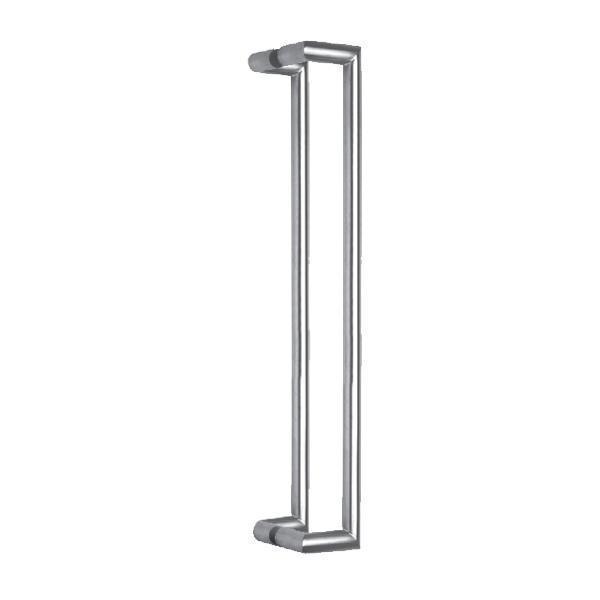

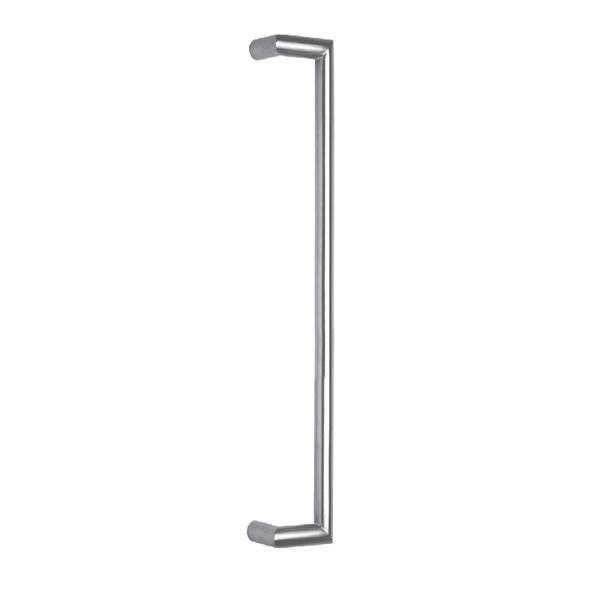

Hollow cranked pull handle 25mm section

Product Code: G3197-25

Bold, angled and linear in design. This cranked pull handle is neat and stylish in appearance. Its design is particularly suited to narrow stile, timber and aluminium glazed doors where hand access is limited. A classic style that can be used in modern or traditional design themes, offering simplicity and practicality with the comfort of a round bar.


Need Help?

Click here for assistance in using this page to create Spec Sheets or request a quote.

Hollow cranked pull handle 25mm section

My Configuration Please select all options to complete your configuration


  • Material
    316 Stainless Steel
  • Dimensions

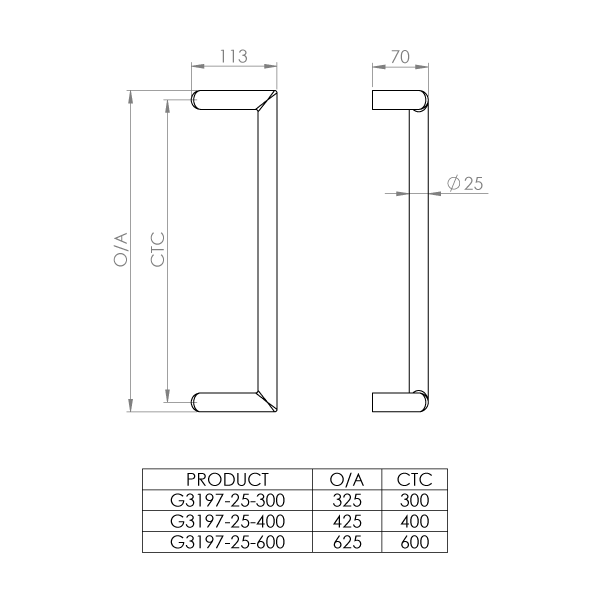

    Overall h325/425/625 x w113 x d70 mm (see line drawing download)
  • Fixing
    Through bolt, surface or rear fixing to suit glass, aluminium or wood doors.
  • Door Thickness
    Suits up to 70mm doors as standard. For thicker doors longer screws are available.
  • Application
    This door handle suits most internal and external, swinging or sliding door applications.
