High Security Euro. lock 60mm back set
Product Code: L60
European-style, 60mm back set mortice lock for swinging doors. The lock incorporates a latch tongue and separate deadbolt for high security applications. The lever will operate the latch and the cylinder will lock and unlock the heavy duty deadbolt bolt as well as pull back the latch for convenience. Cylinder sold separately.
Need Help?
Click here for assistance in using this page to create Spec Sheets or request a quote.
Specifications
-

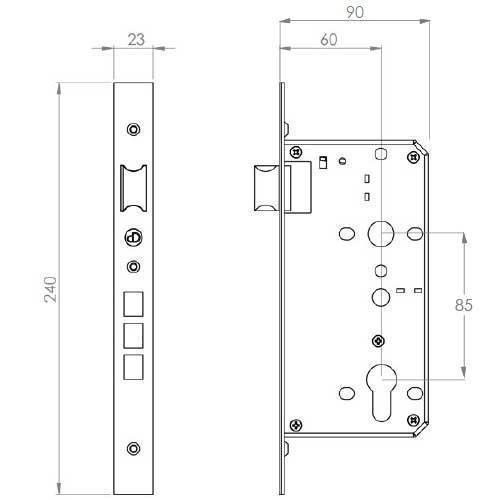

DimensionsOverall h240 x w23 x d90 mm (see line drawing download)
-
FixingWood screw surface fixed.
-
Door ThicknessSuits upward of 35mm doors.
-
ApplicationThis lock is used on external, narrow stile, swinging doors for high security, residential applications. This lock can be used externally, and internally to timber doors and wide stile aluminum glazed or steel glazed doors (Steel & Aluminum Fabricators to confirm suitability).
