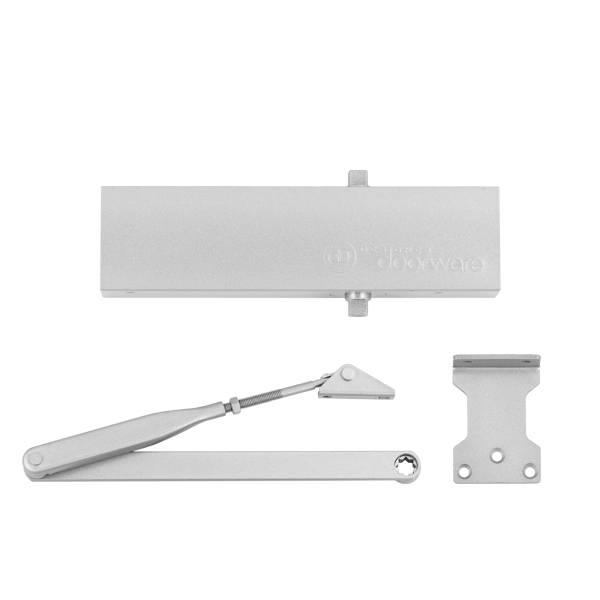

DC inc. Std arm & Bracket EN 2-5 w/o Box Cover

Product Code: DC-H25-SL

A medium to heavy duty, EN 2-5 power adjustable, commercial grade door closer that promotes the smooth and secure operation of your door, ensuring it closes every time it is opened. Finished in silver – as standard - with adjustable back check and delayed action. The back check provides resistance in order to minimise damage when the door is opened with excessive force, while the delayed action slows the closing of the door. Ideal for hospitals, care homes and disabled access areas. Hold open and slide track option available. Fire rated and compliant with EN1154 certification standard.

Compliance:

Need Help?

Click here for assistance in using this page to create Spec Sheets or request a quote.

Specifications

Dimensions

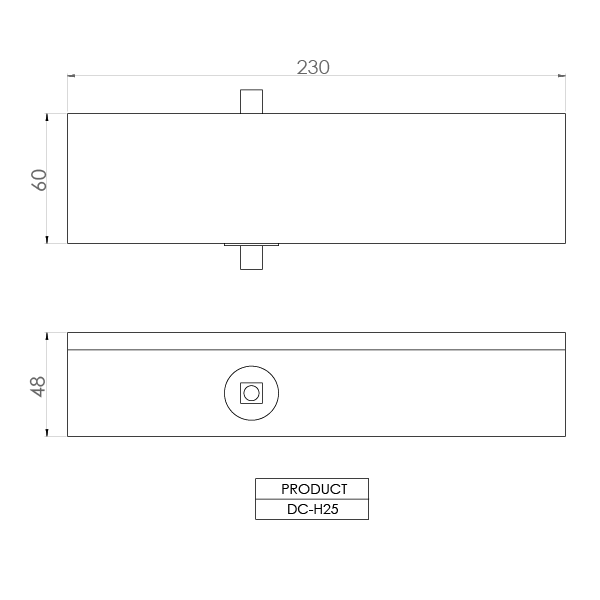

Overall h60 x w230 x d48 mm (see line drawing download)
Fixing

Wood screw surface fixed.
Door Thickness

Suits upwards of 35mm doors.
Application

Suitable for external and internal standard to large, swinging doors where self closing application is required.
