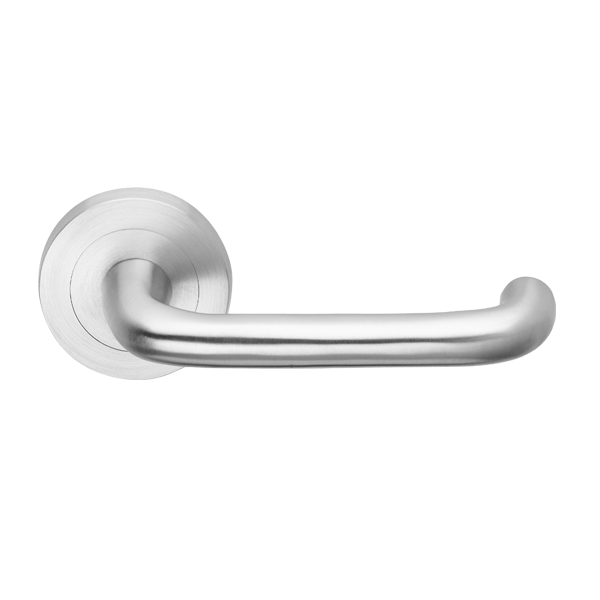

Daniela on Round Rose
Product Code: DA-R10
D-shaped style and highly functional, the Daniela lever door handle, mounted on a round backplate is perfectly suited to work place environments and designed for maximum comfort, efficiency, safety and ease of use.
Compliance:
Need Help?
Click here for assistance in using this page to create Spec Sheets or request a quote.
Specifications
-
MaterialBrass
-

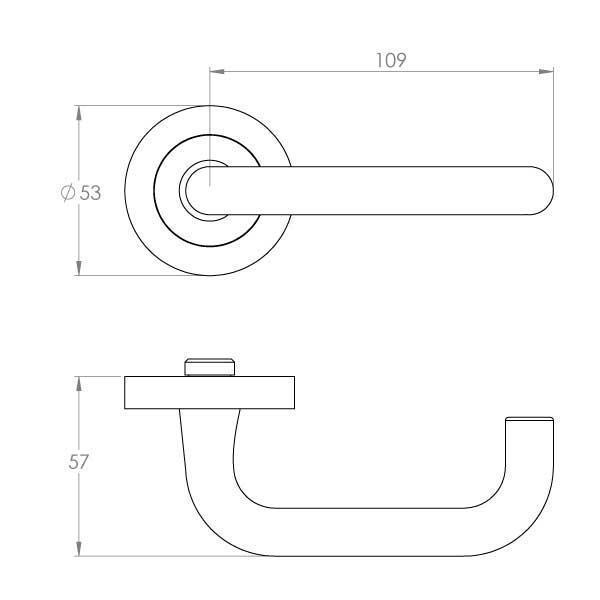

DimensionsOverall h53 x w135.5 x d56 mm (see line drawing download)
-

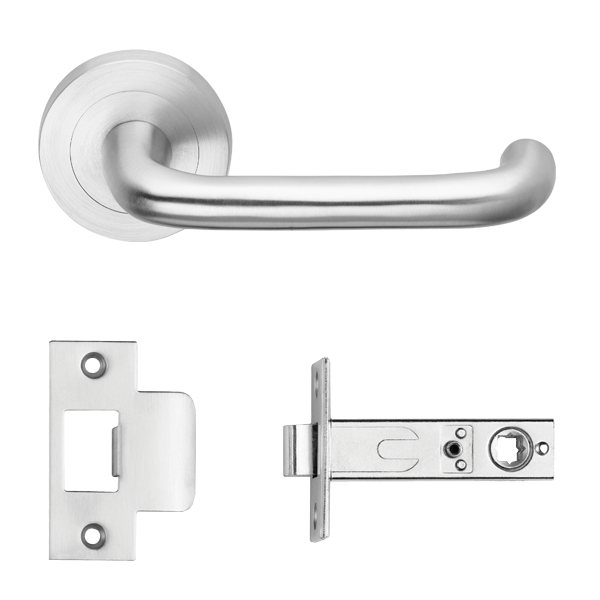

FixingThrough bolt fixing, fully concealed. Self adjusting spindle 7.6mm to 8mm. Fits any lock or latch.
-
Door ThicknessSuits from 32mm to 52mm door as standard. For thicker doors longer screws and spindles are available.
-
ApplicationThis door handle suits most internal and external, swinging door applications. This door handle lever is compliant with Australia's Disability Discrimination Act AS1428.1.
